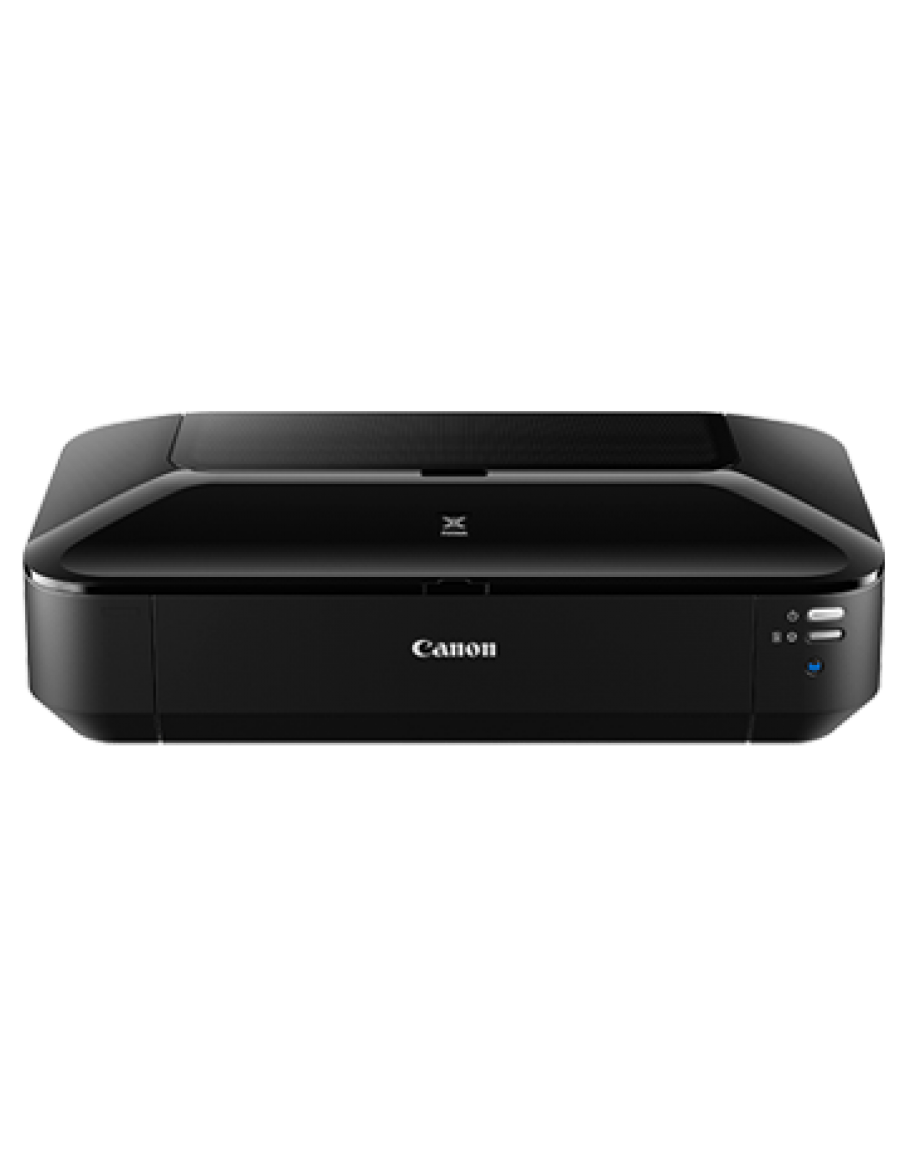

CANON iX6870 (Home / Photo / Office A3 Printers)

Print Head/Consumables

Number of Nozzles

Total 5,120 nozzles

Ink Cartridges (Type/Colours)

PG-750 (Pigment Ink / Black),
CLI-751 (Dye-Based Ink / Cyan, Magenta, Yellow, BK)

[Optional:]
PGI-755XXL (Pigment Ink / Black)
PGI-750XL (Pigment Ink / Black),
CLI-751XL (Dye-Based Ink / Cyan, Magenta, Yellow, BK)

Maximum Print Resolution

9,600 (horizontal)^*1 x 2,400 (vertical) dpi

Document (ESAT/Simplex)

14.5 / 10.4 ipm (mono/colour)

Photo (11 x 14") (PP-201)

120 sec

Photo (4 x 6") (PP-201/Borderless)

36 sec

Print Width

Up to 322.2 mm (12.7")
Borderless: Up to 329 mm (13")

Recommended Printing Area

Top margin: 40.7 mm
Bottom margin: 37.4 mm

Print Margin

Borderless Printing

Top/Bottom/Left/Right margin: 0 mm

Bordered Printing

LTR, LGL
Top margin: 3 mm, Bottom margin: 5 mm
Left margin: 6.4 mm, Right margin: 6.3 mm

Others:
Top margin: 3 mm, Bottom margin: 5 mm
Left/Right margin: 3.4 mm

Supported Media

Rear Tray

Plain Paper (64 - 105 g/m²)
High Resolution Paper (HR-101N)
Photo Paper Pro Platinum (PT-101)
Photo Paper Pro Luster (LU-101)
Photo Paper Plus Glossy II (PP-201)
Photo Paper Plus Semi-Gloss (SG-201)
Matte Photo Paper (MP-101)
Envelope

Paper Size

Rear Tray

A3+, A3, A4, A5 B4, B5, LTR, LGL, LDR, Envelope (COM10, DL), 4 x 6", 5 x 7", 8 x 10", 10 x 12"

[Custom Size]
Width: 55 - 329 mm
Length: 91 - 676 mm

*F4 is possible via custom size settings.

Borderless Printing^*3

A3, A4, LTR, LDR, 4 x 6", 5 x 7", 8 x 10", 10 x 12"

Maximum Capacity

Rear Tray

Plain Paper, 64 g/m² (A3, A4, A5, B4, B5, LTR, LGL, LDR): 150
High Resolution Paper (HR,101N, A3+/A3/A4): 20/50/80
Photo Paper Pro Platinum (PT-101, A3+/A3/A4/4 x 6"): 1/10/10/20
Photo Paper Plus Glossy (PP-201, A3+/A3/A4/4 x 6"): 1/10/10/20
Photo Paper Plus Semi-Gloss (SG-201, A3+/A3/A4/8 x 10/4 x 6"): 1/10/10/10/20
Matte Photo Paper (MP-101, A3/A4/4 x 6"): 10/10/20
Envelope (COM10, DL) : 10

Paper Weight

Rear Tray

Plain Paper: 64 - 105 g/m²
Canon Paper: Approx. 300 g/m² (Max.)
(Photo Paper Pro Platinum, PT-101)

Protocol

TCP/IP

Wired LAN

Type

IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)

Wireless LAN

Type

IEEE802.11b/g/n
2.4 GHz, Supported Channels: 1 - 13
(TW/HK: Supported Channels: 1 - 11 only)

Security

WEP 64/128 bit
WPA-PSK (TKIP/AES)
WPA2-PSK (TKIP/AES)

Canon Printing Apps

Mobile

Canon PRINT, Easy-PhotoPrint Editor

Other

Easy-Layout Editor

Mobile/Cloud Printing Solutions

AirPrint^®

OS System Compatibility^*4

Windows 8 / 7 / XP / Vista
macOS X 10.6.8 or later

Interface

USB 2.0

Dimensions (W x D x H)

Factory Configuration

584 x 310 x 159 mm

Weight

8.1 kg
