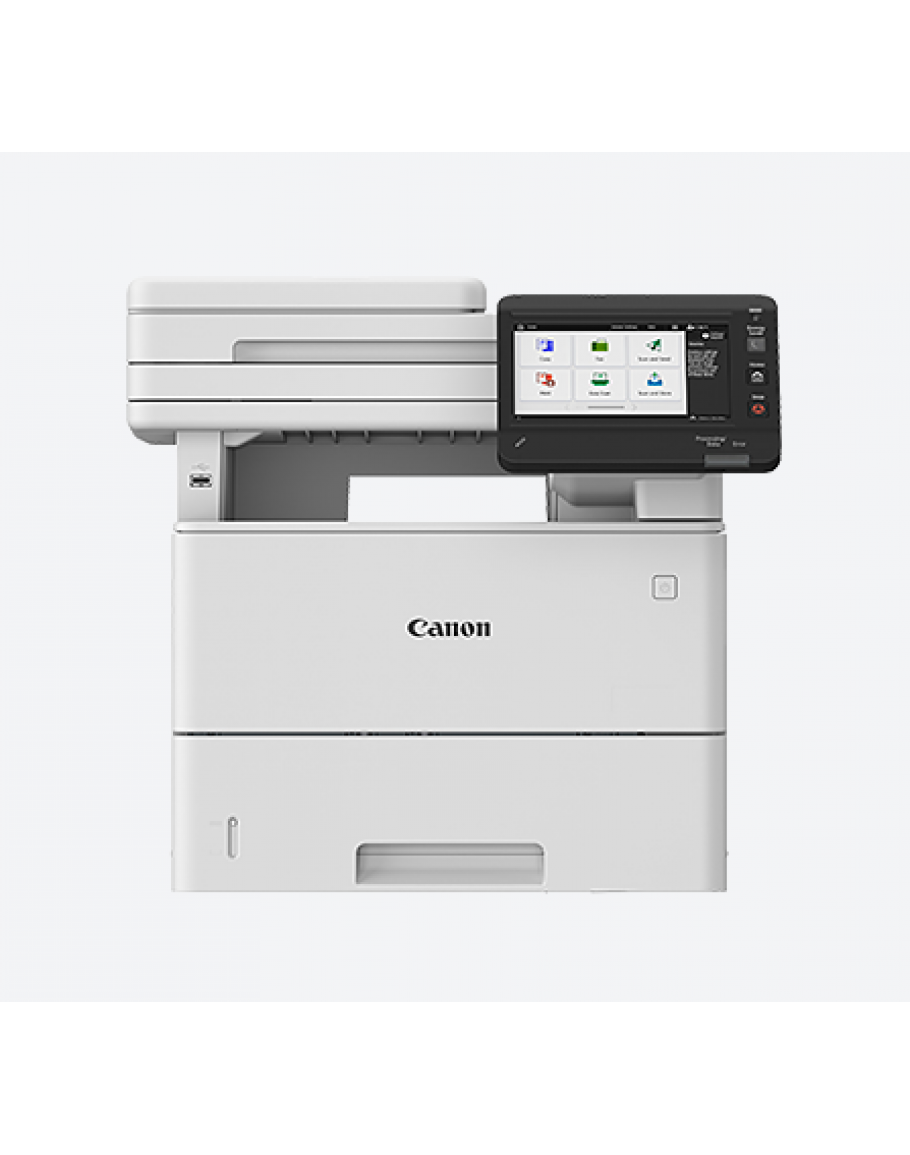

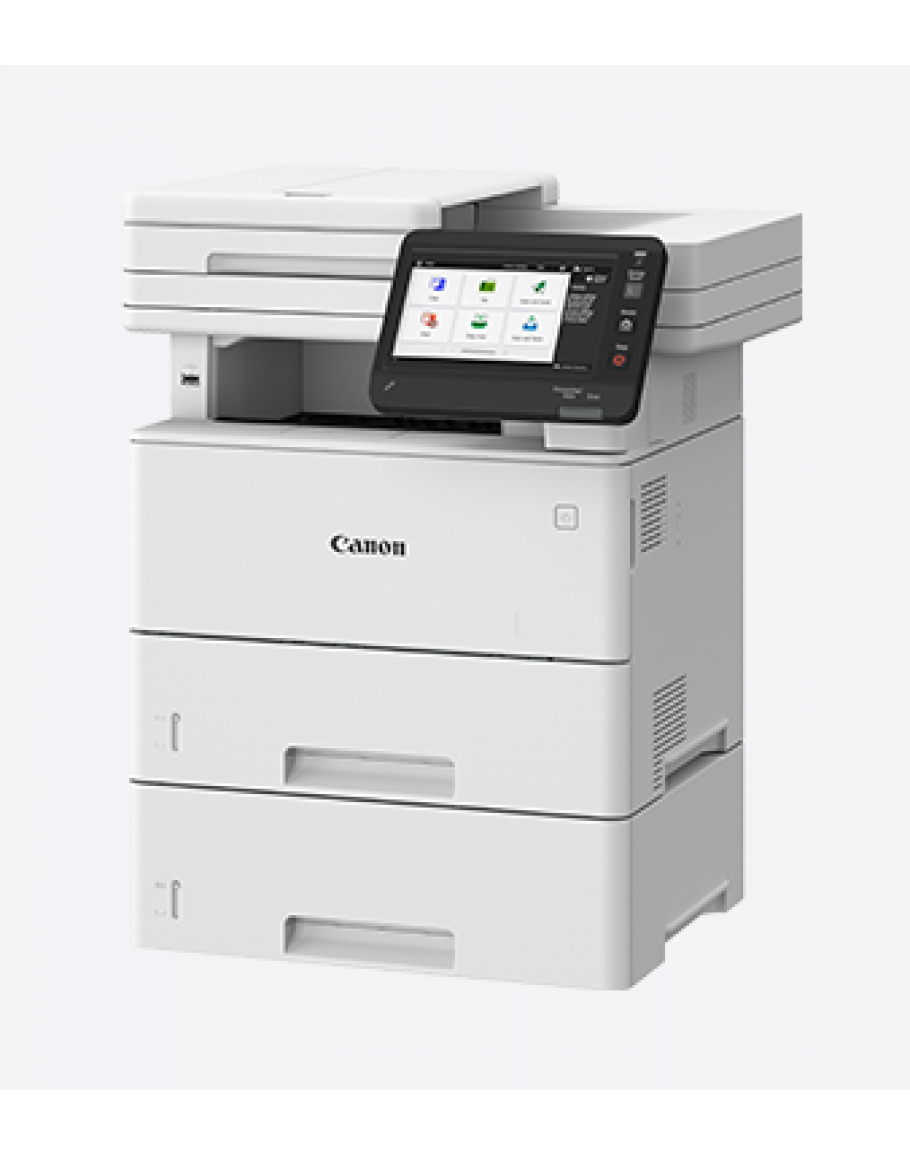

CANON imageFORCE 1643

CANON imageFORCE 1643 A4 Monochrome Multifunction Copier

The Canon imageFORCE 1643 is an A4 monochrome laser multifunctional designed for businesses that require reliable printing, copying, scanning and document management in a compact office solution.

With print speeds of up to 43 pages per minute for A4 documents, the imageFORCE 1643 supports efficient everyday document workflows. It also supports two-sided printing at up to 36 pages per minute, helping businesses manage regular office printing requirements efficiently.

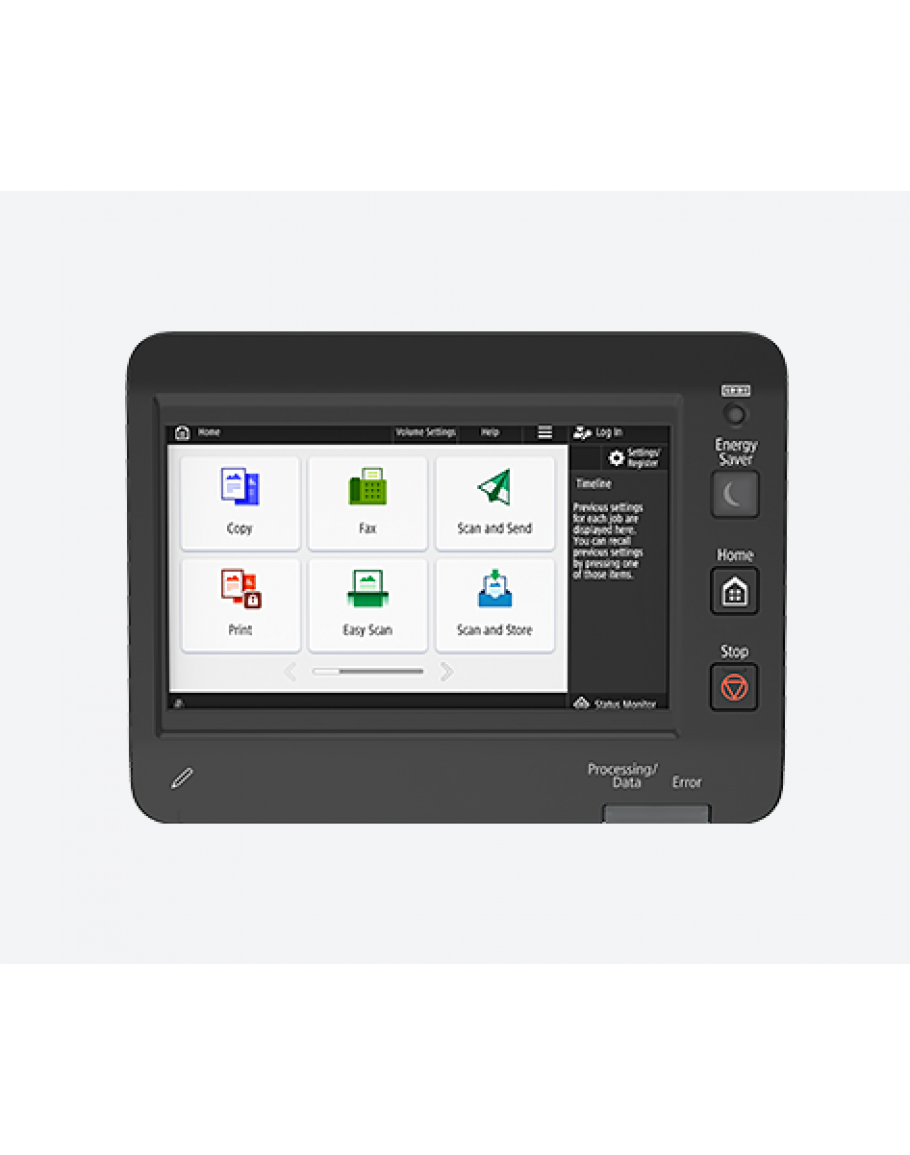

The imageFORCE 1643 features a 7-inch colour touch panel with a responsive and customisable interface for intuitive operation. Smart functions such as Smart Timeline, Guided Help and QR Code support are designed to simplify frequently used tasks and help users navigate the device more easily.

Security features include Encrypted Secure Print, Verify System at Startup and User Authentication. These functions help protect documents and restrict device access to verified users.

The imageFORCE 1643 also supports mobile and cloud printing through AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print.

Whether you need an A4 office copier for printing, copying, scanning or document workflows, the Canon imageFORCE 1643 provides a practical solution for modern business environments.

As an Authorised Canon Dealer, Yeely Copier provides Canon multifunction printers with professional installation, technical support and after-sales service throughout Kedah, Penang and Perlis.

Key Features:

• A4 monochrome laser multifunctional

• Print speed up to 43 pages per minute

• Two-sided printing up to 36 pages per minute

• 7-inch colour touch panel

• Encrypted Secure Print

• User Authentication

• Verify System at Startup

• Smart Timeline function

• Guided Help & QR Code support

• Mobile and cloud printing support

Why Choose Yeely Copier?

• Established Since 1995

• Authorised Canon Dealer Since 2023

• Professional Technical Support Team

• Fast Response Service

• Sales, Rental & Maintenance Solutions

• Serving Businesses Across Kedah, Penang & Perlis

MAIN UNIT

Machine type	A4 monochrome laser multifunctional
Core functions	imageFORCE 1643F: Print, copy, scan, send and fax imageFORCE 1643: Print, copy, scan, send
Control panel	7-inch TFT LCD WVGA colour touch panel
Memory	2.0 GB RAM
Storage	30 GB eMMC
Interface connection	NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) OTHERS Standard: USB 2.0 (Host) ×2, USB 2.0 (Device) ×1
Network security	TLS 1.3, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), WPA3 support (Wi-Fi), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Scan and Send -Virus Concerns for E-mail Reception
Document security	Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*1), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support)
Paper supply capacity (A4, 80 gsm)	Standard: Paper cassette: 550 sheets Multi-purpose tray: 100 sheets Maximum: 2300 sheets (with paper feeder PF-C1)
Paper output capacity (A4, 80 gsm)	150 sheets
Toner yield (Estimated @ 5.0% coverage)	T06 Toner BK: 20,500 pages
Supported media sizes	Paper cassette: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, 16K, F4A (CHN) Custom (Min. 105.0 × 148.0 mm to Max. 216.0 × 355.6 mm) Multi-purpose tray: A4, B5, A5R, A5, A6, LTR, LGL, STMT, EXE, OFICIO, B-OFICIO, M-OFICIO, GLTR, GLGL, FLS, AFLS, indianLGL, Index Card Envelope: COM10, Monarch, C5, DL (Overseas) Custom (Min. 76.2 × 127.0 mm to Max. 216.0 × 355.6 mm)
Supported media weights	Paper cassettes: 60 to 120 gsm Multi-purpose tray: 60 to 199 gsm Duplex: 60 to 120 gsm
Warm-up time	Quick startup mode: 4 Seconds or less*2 From sleep mode: 20 Seconds or less
Dimensions (W × D × H)	480 × 518 × 458 mm
Installation space (W × D)	480 × 668 mm*3
Weight*4	Approx. 55.1 lb (25 kg)

Print

Print speed (BW)	1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6) 2-sided: Up to 36 ppm (A4)
Print resolution (dpi)	600 dpi × 600 dpi
Page description languages	Standard: UFR II, PCL6/PCL5, Adobe® PostScript®3™
Direct print	Supported file types: PDF, EPS, TIFF/JPEG, and XPS
Printing from mobile and cloud	AirPrint, Mopria, IPP Everywhere, Canon PRINT, uniFLOW Online and Universal Print A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information
Operating system	UFRII: Windows®10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PCL: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 PS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025, macOS (10.15 or later) PPD: Windows® 10/11, macOS (10.15 or later) Note: At the timing of Jul, 2025.

Copy

Copy speed (BW and CL)	1-sided: Up to 43 ppm (A4), up to 45 ppm (A5, A6), up to 45 ppm (Letter) 2-sided: Up to 36 ppm (A4), up to 37 ppm (Letter)
First-copy-out time (A4, BW/CL)	A4: Approx. 6.3 sec
Copy resolution (dpi)	600 × 600 dpi (Platen / default) 600 × 600 dpi (ADF) 300 × 600 dpi (ADF / default)
Multiple copies	Up to 9,999 copies
Copy density	Automatic or manual (9 levels)
Magnification	Variable zoom: 25% to 400% (1% increments)

Scan

Type	Standard: Single-pass Duplexing Automatic Document Feeder
Document feeder paper capacity (80 gsm)	Up to 50 sheets
Supported media sizes	Document feeder media size: A4, B5, A5, A6, LGL, LTR, STMT Custom size: 48.0 × 85.0 to 216.0 × 355.6 mm
Scan speed (ipm: A4)	1-sided scanning: 50/50 (300 × 300 dpi, send), 50 (300 × 600 dpi, copy) 2-sided scanning: 100/100 (300 × 300 dpi, send), 100 (300 × 600 dpi, copy)
Scan resolution (dpi)	Scan for copy: up to 600 dpi × 600 dpi Scan for send: (Push, BW) up to 600 dpi × 600 dpi, (Pull, BW) up to 600 dpi × 600 dpi (Push, CL) up to 300 dpi × 300 dpi, (Pull, CL) up to 300 dpi × 300 dpi Scan for fax: up to 600 dpi × 600 dpi
Pull scan specifications	Color Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 10/11/Server 2016/Server 2019/Server 2022/Server 2025 As of Dec. 2024

Send

Destination	Standard: E-mail / Internet FAX (SMTP*5), SMB, FTP, WebDAV, Mail Box
Address book	LDAP (2,000) / Local (1,600) / Speed dial (200)
Communication protocol	File: FTP (TCP/IP), SMB (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3
File format	TIFF (MMR), JPEG, PDF (Compact, OCR (Text Searchable), Optimise for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, OCR (Text Searchable), Device Signature, User Signature), Office Open XML (PowerPoint, Word)
